    產品名稱 : 單雙動鋁合金氣缸
    產品型號 : 09
    產品描述

    JEF/JEG Series
    JEF/JEG Series pneumatic actuators are specifically designed to respond to your demanding needs on automation valve market. We can provide a wide range of torque outputs to suit quarter turn ball, butterfly, plug valves and dampers for complete valves automation solutions. The latest manufacturing technologies have been operated in order to supply a high quality and cycle-life on.JEF/JEG series. extensive inventory & engineering capabilities allow us to provide reliable and product to our customer with satisfaction.
    JEF/JEG系列氣動執行器是蝶閥、旋轉閥、風門等1/4轉閥門運用在製程上控制設計出的理想產品。雙齒輪排設計再加上曲柄式設計,提供使用者更多選擇以應不同的情況需求。優越的結構設計、精密的加工過程、強化表面特殊處理以及嚴格的品質控管過程,使產品不僅達到最佳控制性能,亦增加其使用壽命。

    詢價
    產品介紹
    Product Features

    產品特色

    Type 型式 Pneumatic Twin Piston Actuator
    JEF TYPE=Double Acting
    JEG TYPE=Single Acting(Spring Return)
    雙活塞壓縮傳動
    JEF型=雙作用氣缸
    JEG型=單作用氣缸(彈簧回復)
    Construction
    結構特色
    1.Double racks and single pinion with self-centering.
    2.Three points supported pistons.
    1.以大、小齒帶動加上自動定位
    2.三叉式活塞作動配置
    Specification
    規格
    Interface Actuator/Valve:
    4 or 8 female thread holes in the body conforms to DIN/ISO 5211, PART 1+2
    Shaft:Din3337
    Interface Actuator/Solenoid Valve:NAMUR
    Interface Actuator/Signal unit:NAMUR
    氣缸與閥連接處:
    DIN/ISO 5211 PART 1+2,本體上有4或8孔位可供固定
    心軸:依據DIN 3337
    氣缸與電磁閥連接處:NAMUR
    氣缸與訊號控制連接處:NAMUR
    Material
    材質
    Body/End Cap:Aluminum Alloy+Epoxy Coated
    Gaskets:Nitrile Rubber=NBR(BUNA N)
    Bearing:Easy sliding plastic+O-Ring+C-Ptfe
    Pistons:Aluminum Alloy
    Shaft:Steel+Zinc Plated
    本體/側蓋:鋁合金+環氧樹脂處理
    活塞齒輪:鋁合金
    心軸:鋼+電鍍處理
    襯墊:橡膠
    滑動件:簡易滑動塑膠+O型環+強化特弗龍
    Ambient temperature
    外圍溫度
    (-12 TO 80°C) (-12 至 80°C)
    Torque Range
    扭力範圍
    4 TO 6000 Nm 4 至 6000 Nm
    Air Supply
    氣源壓力
    2 TO 8 Bar (Recommend 4 to 6 bar) 2 TO 8 Bar (建議範圍 4 to 6 bar)
    Movement
    作動範圍
    91.5° From -0.5° CW to 91° CCW 91.5° 順時針 -5° 至逆時針91°
    Medium Quality
    氣源品質
    Filtered air (Residual oil,dust, and  water mediums)
    according to PNEUROP/ISO Class 4
    過濾後的空氣品質(殘油、灰塵、含水量)
    依據PNEUROP/ISO Class4

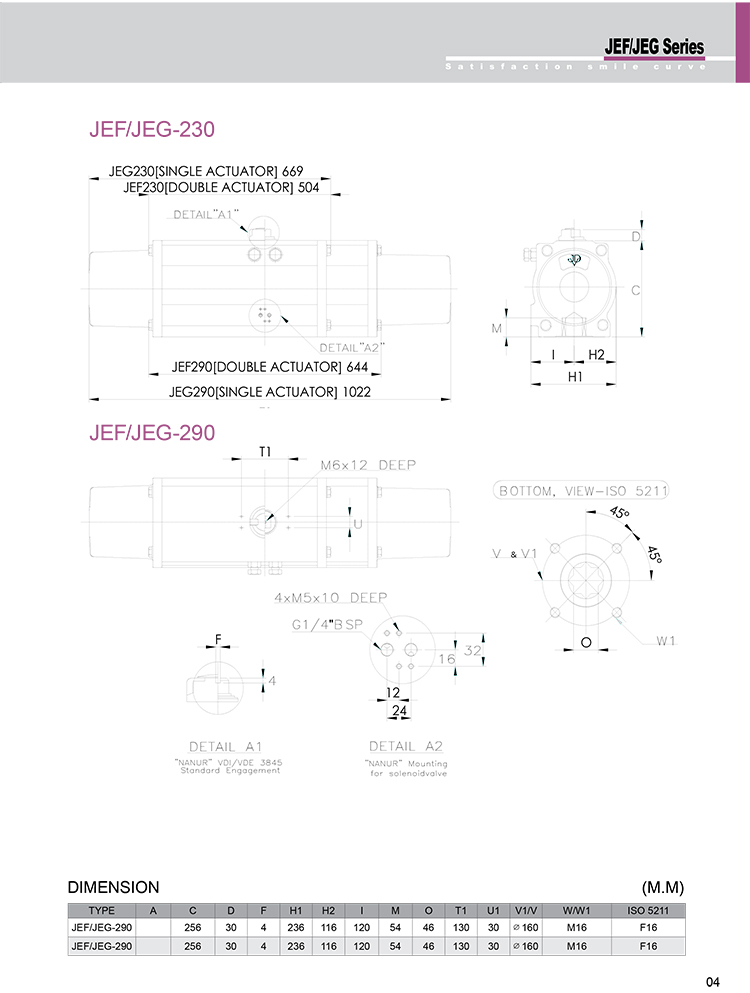

    proimages/pic_pro-009-pdf.jpg
    Technical Specification MATERIAL
    proimages/pic_pro-009-pdf2.jpg
    NO PART DESCRIPTION UNIT QTY MATERIAL CORROSION    PROTECTION OPTIONAL MATERIAL
    1 Position indicator 4 Polypropylene + GF
    2 Position indicator holder 1 Polypropylene + GF
    3 Spring clip(pinion) 1 Stainless Steel HP160,200Nickel plated
    4 Thrus washer(pinion) 1 Stainless Steel
    5 Thrus bearing(pinion) 1 Polyphthalamide
    6 Body 1 Extruded Aluminium alloy Hard anodized
    7 Bearing(piston back) 2 Polyphthalamide
    8 Piston 2 Die Cast Aluminium Hard anodized
    9 O Ring(piston) 2 Nitrile(NBR70)   Viton Silicon Viton
    10 Bearing(piston head) 2 Polyphthalamide
    11 Cap bolt washer 8 Stainless Steel
    12 Cap bolt (end cap) 2 Stainless Steel
    13 Right and left end cap 2 Die Cast Aluminium Chromate+Polyester coated
    14 O Ring(end cap) 2 Nitrile(NBR70)   Viton Silicon Viton
    15 Piston guide 1 Polypropylene + GF
    16 O Ring(pinion top) 1 Nitrile(NBR70)   Viton Silicon Viton
    17 Bearing (pinion top) 1 Nylon 46
    18 Thrust bearing (pinion) 1 Polyphthalamide
    19 Open. Close cam(stop arrangement) 1 Stainless Steel
    20 Drive shaft 1 Steel alloy Nickel planted
    21 Bearing (piston bottom) 1 Nylon 46
    22 O Ring (pinion bottom) 1 Nitrile(NBR70)   Viton Silicon Viton
    23 O Ring (stop screw) 1 Nitrile(NBR70)   Viton Silicon Viton
    24 Stop bolt washer 2 Stainless Steel
    25 Stop nut 2 Stainless Steel
    26 Stop bolt 2 Stainless Steel
    27 Spring (catridge) min.5/max.12 High alloy Spring Steel Epoxy coated
    28 Spring holder 1 Polypropylene + GF
    Technical Specification MATERIAL
    proimages/pic_pro-009-pdf3.jpg
    NO PART DESCRIPTION Q'TY MATERIAL NO PART DESCRIPTION Q'TY MATERIAL
    1 Cylinder Body 1 Aluminium 22 Snap Ring 5 Stainless Steel
    2 Drive shaft 1 Steel alloy 23 Indicator 1 ABS
    3 Yoke Pin 1 Steel 24 Indicator Holder Cover 1 ABS
    4 Yoke 1 Steel 25 Double Acting Cover 2 Aluminium
    5 Bottom Spacer 1 Nylon 26 Piston O-Ring 2 NBP
    6 Stem Bottom Bearing 1 Stainless Steel 27 Bearing (Piston head) 3 PTFE
    7 Stem Bottom O-Ring 1 NBP 28 Cover O-Ring 2 NBR
    8 Piston 2 Aluminium 29 Stop Bolt O-Ring  2 NBR
    9 Snap Ring 2 Stainless Steel 30 Stop Bolt Washer 2 Stainless Steel
    10 Roller Pin 1 Steel 31 Stop Bolt Nut 2 Stainless Steel
    11 Shaft 1 Steel 32 Stop Bolt 2 Stainless Steel
    12 Snap Ring 2 Stainless Steel 33 Inner Spring  1 or 2 Spring Steel
    13 Piston Back Bearing 3 PTFE 34 Outer Spring 1 or 2 Spring Steel
    14 Hole Sealant 2 NBR 35 Spring Bolt  1 or 2 Stainless Steel
    15 Top Spacer 1 Nylon 36 Spring Retainer 1 or 2 Aluminium
    16 OCT Cam 1 Steeel 37 Spring O-Ring  1 or 2 NBR
    17 Stem Thrust Bearing 1 Stainless Steel 38 Spring Washer 1 or 2 Steel
    18 Stem Top Bearing  1 Stainless Steel 39 Spring Nut  1 or 2 Stainless Steel
    19 Stem Top O-Ring 1 NBR 40 Sprng Return Cover 2 Aluminium
    20 Teflon Washer 1 PTFE 41 Cover Bolt 8 Stainless Steel
    21 Stem Thrust Washer 1 Stainless Steel 42
    proimages/pic_pros-011.jpg

    JMO Series manual override is an emergency device for opening/closing of valve in case of pneumatic actuator failure.

    its self-locking worm gear design provides safe and easy operation for transferring between control and manual.

    JMO系列手動裝置唯一一款緊急操作裝置,用物當氣動執行器失去作用時, 依然能即由手動裝置來達到閥開/關動作。特殊過輪自動定位設計,便得再切換氣動/手動過程中更為安全及簡易。

    Applicable standard 設計標準
    Model 型號 : JMO-1 / JMO-2 / JMO-4
    Torgue Range扭力範圍 : 100 to 5200Nm
    Temperature溫度範圍 : -20Deg c to +80Deg c
