    產品名稱 : 浮動式球塞閥
    產品型號 : 08
    產品描述

    JBF Series Floating Type Soft Seat Ball Valve
    Full Bore Two-Piece Flanged Ends JIS 10/20/40K ANSI 150/300/600LB DIN PN10/16/25/40

    詢價
    產品介紹
    Product Features

    JBF series is the quarter turn design ball valve broadly used in Oil & Gas, Mining, Petrochemical, Chemical Industries, Power Generation…etc. applications. Optional Fire Safe, Long Stem, and Life Loading designs provide safer and wider usage for different requiremets.

    Applicable Standards

    • Body material :

    Standard in WCB, CF8,CF8M. Special material is available according to requirements.

    • Normal size:

      1/2” to 12”(DN15 yo DN300)

    • Pressure rating :

     JIS 10/20/40K, ANSI 150/300/600LB, DIN PN 10/16/25/40
    End connections: Raised face flange

    • End connections :
    Raised face flange
    • Temperature Range:

    -50 Deg C to 180 Deg C

    • Face-To-Face Dimensions :

    JIS B2003  ANSI B16.10  DIN 3202 F4/F5

    • Flange Dimensions :
    JIS B2238 / ANSI B16.5 DIN 2632/2633/2634/2365
    • Body Pressure Testing :

    JIS B2003 / ANSI B16.34 / API 598

    • Seat Leakage Testing:

    ANSI B16.34 / API 598 CLASS VI

    • Casting :
    MSS-SP25/MSS-SP55

    NACE MR-01-75

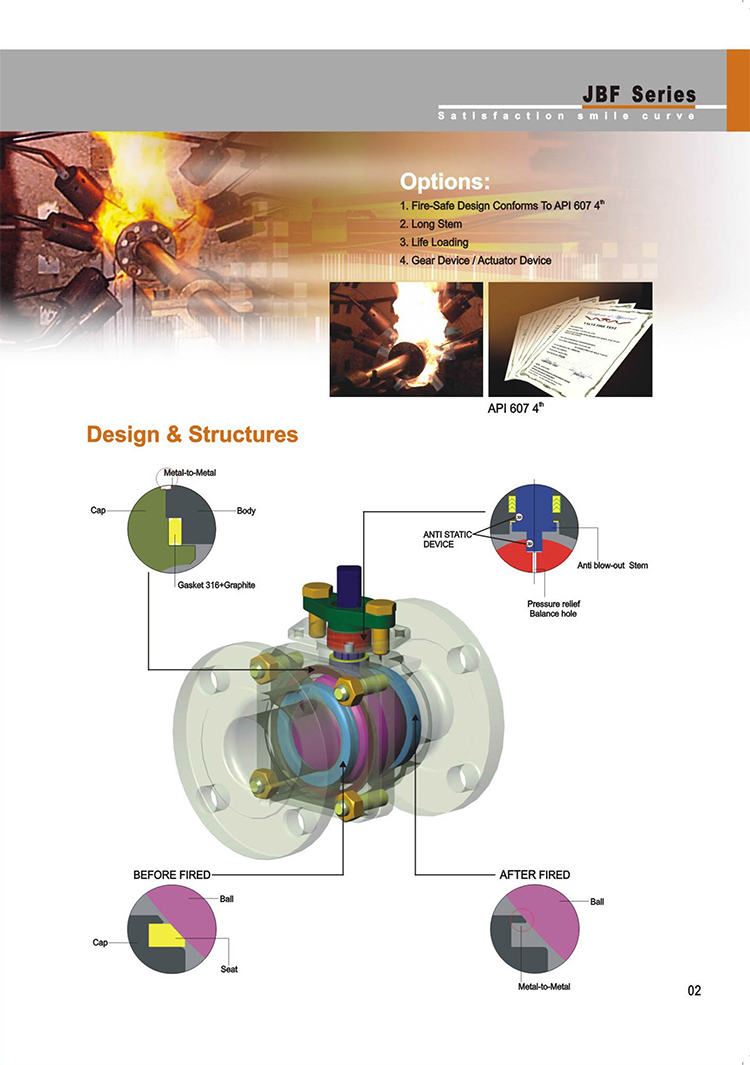

    proimages/pic_pro-008-pdf.jpg
    MATERIAL
    proimages/pic_pro-008-pdf-2.jpg
    NO PART NAME MATERIAL
    1 BODY WCB(SCPH2) CF8(SCS13A) CF8M(SCS14A)
    2 CAP WCB(SCPH2) CF8(SCS13A) CF8M(SCS14A)
    3 BALL CF8(SCS13A) CF8M(SCS14A)
    4 SEAT PTFE/G-PTFE/C-PTFE
    5 BOLT & NUT SUS304
    6 GASKET PTFE/GRAPHITE(FIRE SAFE)
    7 THRUST WASHER PTFE
    8 STEM PACKING PTFE/GRAPHITE(FIRE SAFE)
    9 STEM SUS304 SUS316
    10 GLAND CF8(SCS13A)
    11 TRAVEL SHOP SUS304
    12 SNAP CATCH SUS304
    13 GLAND BOLT SUS304
    14 HANDLE FCD45(15A~80A) / SGP / FCD45(100A~300A)
    Above materials may vary with different using conditions.
