    產品名稱 : 保溫夾套閥
    產品型號 : 07
    產品描述

    JBK/JBKM Series Floating Type Soft Metal Seat Steam Jacket Ball Valve
    JBK/JBKM Series ball valves are designed for keeping fluid in specific temperature during the process. Optional seat materials provide the wider range of application to satisfy various industrial environments.

    詢價
    產品介紹

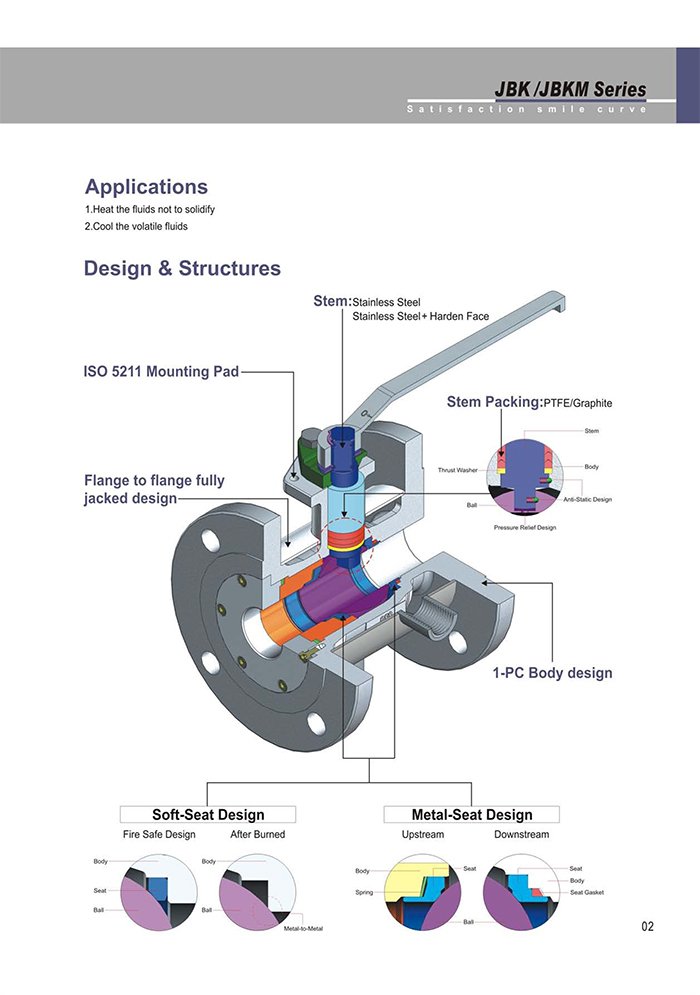

    Product Features
    1. 1-PC valve body prevents the leakage from joint side
    2. Fully jacketed design keeps the fluid temperature heated or cooled evenly
    3. Seats are available in soft-seat and metal-seat designs
    4. Anti-Static design
    5. Anti-blow out stem design (Size 2-1/2” and above)
    6. ISO 5211 mounting pad
    7. Fire Safe design

    Applicable Standards

    • Body material :
    Standard in CF8,CF8M. Special material is available according to requirements.
    • Nominal sze :

     1/2” to 8”(DN15 to DN200)

    • Pressure rating :
    JIS 10/20K, ANSI 150/300LB
    • End connections :
    Raised face flange
    • Temperature Range:
    (Soft seat) : -29 Deg C to 180 Deg C
    (Metal seat): -29 Deg C to 350 Deg C
    • Face-To-Face Dimensions :
     JIS B2002/ANSI B16.10
    • Flange Dimensions :
    JIS B2220 / ANSI B16.5
    • Body Pressure Testing :
     JIS B2003 / ANSI B16.34 / API 6D
    • Seat Leakage Testing :

    (Soft seat) : ANSI B16.34 / API 6D CLASS VI
    (Metal Seat) : ANSI B16.104/ FCI 70-2 CLASS V

    • Casting :
    MSS-SP61/MSS-SP25/MSS-SP55
    proimages/pic_pro-007-pdf.jpg
    DIMESIONS (JBK/JBKM-A2 SERIES JIS-20K)
    proimages/pic_pro-007-pdf2.jpg
    PORT SIZE FLANGE SIZE A D S E L K T H F M N Q W P C
    15 1/2" 40 1-1/2" 15 63 10 130 140 140 18 105 81 19 4 42 M5 57 NPT 1/2"
    20 3/4" 40 1-1/2" 20 68 10 130 152 140 18 105 81 19 4 42 M5 63 NPT 1/2"
    25 1" 50 2" 25 76 12 160 165 155 18 120 96 19 8 50 M6 69.5 NPT 3/4"
    40 1-1/2" 65 2-1/2" 38 88 17 224 190 175 20 140 116 19 8 70 M8 75 NPT 3/4"
    50 2" 80 3" 50 94 17 224 216 200 22 160 132 23 8 70 M8 87 NPT 3/4"
    65 2-1/2" 100 4" 65 115 20 324 241 225 24 185 160 23 8 70 M8 100.5 NPT 3/4"
    80 3" 125 5" 76 120 20 324 283 270 26 225 195 25 8 70 M8 122 NPT 3/4"
    100 4" 150 6" 100 195 27 400 305 305 28 260 230 25 12 102 M10 120.5 NPT 3/4"
    150 6" 200 8" 150 240 32 550 403 350 30 305 275 25 12 125 M12 161.5 NPT 3/4"
    200 8" 300 12" 200 300 35 1000 502 480 36 430 395 27 16 140 M16 196 NPT 3/4"

    MATERIAL

    proimages/pic_pro-007-pdf3.jpg
    NO PARTS NAME MATERIAL
    1 BODY ASTM A351-CF8 ASTM A351-CF8M
    2A SOFT-SEAT BALL ASTM A351-CF8 ASTM A351-CF8M
    3A SEAT PTFE/R-PTFE / TFM-1600 / PEEK
    2B METAL-SEAT BALL ASTM A351-CF8+HCr ASTM A351-CF8M+HCr
    3B SEAT ASTM A351-CF8+STELLITE ASTM A351-CF8M+STELLITE
    3C SEAT PACKING GRAPHITE
    3D SEAT SPRING INCONEL X750
    4 SEAT SUPPORT ASTM A351-CF8 ASTM A351-CF8M
    5 GASKET PTTE/GRAPHITE
    6 CAP ASTM A351-CF8 ASTM A351-CF8M
    7 BOLT STAINLESS STEEL
    8A SOFT-SEAT STEM SUS304 SUS316
    8B METAL-SEAT SUS304+HARDEN FACE SUS316+HARDEN FACE
    9 THRUST WASHER SUS316+HARDEN FACE
    10 STEM PACKING PTTE/GRAPHITE
    11A SOFT-SEAT RING SUS304 SUS316
    11B METAL-SEAT SUS304+HARDEN FACE SUS316+HARDEN FACE
    12 MANUAL GLAND ASTM A351-CF8
    13 GLAND BOLT SUS304
    14 TRAVEL SHOP SUS304
    15 SNAP CATCH SUS304
    16 HANDLE FCD45(15A~80A)/SGP/FCD(100A~200A)
    17 JACKET SUS304
    18 NIPPLE JOINT SUS304
    19 PLUG SUS304
    20 ACTUATOR GLAND SUS304
    Above materials may vary with different using conditions. Notes: HCr= Hard Chrome Plated
