    產品名稱 : 三片固心式球塞閥
    產品型號 : 05
    產品描述

    JBT /JBTM Series Trunnion Type Soft Metal Seat Ball Valve
    Full Bore Three Piece Flanged Ends ANSI 150/300/600LB

    詢價
    產品介紹
    Product Features

    1. Trunnion ball design keeps the seats touch ball tightly to keep stable and lower torque.
    2. Double Block and Bleed design keeps the ball to fully open and fully close.
    3. Optional soft seat or metal seat for different using conditions.
    4. Cavity pressure relief
    5. Fire Safe Design
    6. Anti Blow-Out Stem
    7. Anti-Static Device
    8. Locking Device
    9. ISO 5211 Mounting Pad Design
    10. Gear Device/Actuator Device

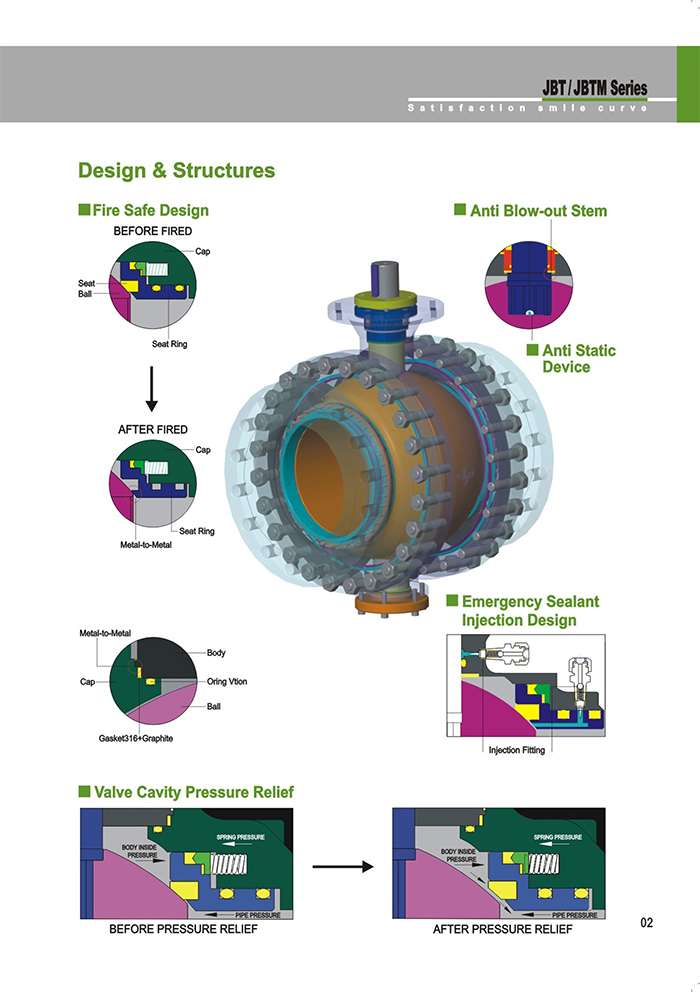

    proimages/pic_pro-005-pdf.jpg

    Applicable Standards

    proimages/pic_pro-005-pdf2.jpg
    • Body material :
    Standard in WCB, CF8, CF8M. Special material is available according to requirements.
    • Nominal sze :
    2” to 24” (DN50 to DN600)
    • Pressure rating :
    ANSI 150/300/600LB
    • End connections :
    RF,RTJ
    • Temperature range for Soft Seat (JBT series) :
    29 Deg C ~ 180 Deg C
    • Temperature range for Metal Seat (JBTM Series) :
    -29 Deg C ~ 500 Deg C
    • Face-To-Face Dimensions :
    ANSI B16.10
    • Flanged Dimensions :
    ANSI B16.5
    • Body Pressure Test Rating :
    ANSI B16.34 / API 598
    • Seat Leakage (JBT Series)
    ANSI B16.34 / API 598
    • Seat Leakage(JBTM Series) :
    ANSI B16.104 / FCI70-2 CLASS V
    • Casting :
    MSS-SP-25 / Mss-SP-55
    • Fire Test :
    API 607 4TH EDITION
    • Sour Service :
    NACE MR-01-75
    Technical Specification MATERIAL
    NO PART NAME MATERIAL
    1 dc MATERIAL ASTM A351-CF8 ASTM A351-CF8M
    2 CAP ASTM A216-WCB ASTM A351-CF8 ASTM A351-CF8M
    3 BALL ASTM A351-CF8 ASTM A351-CF8 ASTM A351-CF8M
    4 STEM ASTM A182 F304 ASTM A182 F304 ASTM A182 F316
    5 BODY GLAND ASTM A216-WCB ASTM A351-CF8 ASTM A351-CF8M
    6 GLAND ASTM A216-WCB ASTM A351-CF8 ASTM A351-CF8M
    7 BEARING RETAINER ASTM A216-WCB ASTM A351-CF8 ASTM A351-CF8M
    8 SEAT RING ASTM A351-CF8 ASTM A351-CF8 ASTM A351-CF8M
    9 SEAT RING SEAL 15%G-PTFE/GRAPHITE 15%G-PTFE/GRAPHITE 15%G-PTFE/GRAPHITE
    10 SEAT RING RETAINER ASTM A351-CF8 ASTM A351-CF8 ASTM A351-CF8M
    11 SEAT 15%G-PTFE/TFM-1600 15%G-PTFE/TFM-1600 15%G-PTFE/TFM-1600
    12 BODY GASKET GRAPHITE GRAPHITE GRAPHITE
    13 BODY GASKET GRAPHITE GRAPHITE GRAPHITE
    14 GLAND PACKING 15%G-PTFE/GRAPHITE 15%G-PTFE/GRAPHITE 15%G-PTFE/GRAPHITE
    15 GLAND THRUST WASHER 15%G-PTFE/GRAPHITE 15%G-PTFE/GRAPHITE 15%G-PTFE/GRAPHITE
    16 GLAND THRUST WASHER SUS316+PTFE SUS316+PTFE SUS316+PTFE
    17 STEM THRUST WASHER SUS316+PTFE SUS316+PTFE SUS316+PTFE
    18 TRUNNION STEM ASTM A182 F304 ASTM A182 F304 ASTM A182 F316
    19 STEM O-RING VITON VITON VITON
    20 SEAT RING O-RING VITON VITON VITON
    21 CAP O-RING VITON VITON VITON
    22 SPRING INCONEL X-750 INCONEL X-750 INCONEL X-750
    23 TRUNNION STEM WASHER SUS316+PTFE SUS316+PTFE SUS316+PTFE
    24 TRUNNION STEM GASKET 15%G-PTFE/GRAPHITE 15%G-PTFE/GRAPHITE 15%G-PTFE/GRAPHITE
    25 RETAINER BOLT CARBON STEEL STAINLESS STEEL STAINLESS STEEL
    26 GLAND BODY BOLT CARBON STEEL STAINLESS STEEL STAINLESS STEEL
    27 GLAND BOLT CARBON STEEL STAINLESS STEEL STAINLESS STEEL

    Technical Specification

    proimages/pic_pro-005-pdf3.jpg
    NO PART NAME MATERIAL
    1 BODY ASTM A216-WCB ASTM A351-CF8 ASTM A351-CF8M
    2 CAP ASTM A216-WCB ASTM A351-CF8 ASTM A351-CF8M
    3 BALL ASTM A351-CF8 ASTM A351-CF8 ASTM A351-CF8M
    4 STEM ASTM A182 F304 ASTM A182 F304 ASTM A182 F316
    5 BODY GLAND ASTM A216-WCB ASTM A351-CF8 ASTM A351-CF8M
    6 GLAND ASTM A216-WCB ASTM A351-CF8 ASTM A351-CF8M
    7 TRUNNION ASTM A216-WCB ASTM A351-CF8 ASTM A351-CF8M
    8 SEAT RING ASTM A351-CF8 ASTM A351-CF8 ASTM A351-CF8M
    9 SEAT RING SEAL 15%G-PTFE/GRAPHITE 15%G-PTFE/GRAPHITE 15%G-PTFE/GRAPHITE
    10 SEAT RING RETAINER ASTM A351-CF8 ASTM A351-CF8 ASTM A351-CF8M
    11 BOLT&NUT B7 & 2H B8 &8 B8 &8
    12 SEAT 15%G-PTFE/TFM-1600 15%G-PTFE/TFM-1600 15%G-PTFE/TFM-1600
    13 BODY GASKET GRAPHITE GRAPHITE GRAPHITE
    14 GLAND PACKING 15%G-PTFE/GRAPHITE 15%G-PTFE/GRAPHITE 15%G-PTFE/GRAPHITE
    15 GLAND THRUST WASHER 15%G-PTFE/GRAPHITE 15%G-PTFE/GRAPHITE 15%G-PTFE/GRAPHITE
    16 BEARING SUS316+PTFE SUS316+PTFE SUS316+PTFE
    17 STEM THRUST WASHER SUS316+PTFE SUS316+PTFE SUS316+PTFE
    18 TRUNNION BEARING SUS316+PTFE SUS316+PTFE SUS316+PTFE
    19 STEM O-RING VITON VITON VITON
    20 SEAT RING O-RING VITON VITON VITON
    21 CAP O-RING VITON VITON VITON
    22 SPRING INCONEL X-750 INCONEL X-750 INCONEL X-750
    23 WASHER SUS316+PTFE SUS316+PTFE SUS316+PTFE
    24 GLAND BODY BOLT CARBON STEEL STAINLESS STEEL STAINLESS STEEL
    25 GLAND BOLT CARBON STEEL STAINLESS STEEL STAINLESS STEEL
    26 PIN STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL
    Above materials may vary with different using conditions.
