    產品名稱 : 三片式METAL高平台球閥
    產品型號 : 04
    產品描述

    JBSM Series 3-PC High Performance Metal Seat Ball Valve
    Full Bore TH/SW/BW/Flanged Ends Class 600 LB JBSM Metal seat ball valve is designed for use in severe conditions such as high temperature, high pressure, and abrasive fluid in fields of Oil & Gas, Petroleum, Petrochemical, Chemical, Power Generayion,Pulp & Paper, Mining industries.

    詢價
    產品介紹
    Product Features
    1. Oversize stem design prevents deformation from high pressure or high temperature
    2. Larger size ball design provides better sealing to prevent leakage
    3. ANSI 600LB wall thickness design
    4. Bi-direction design for back flow application
    5. Inconel spring design to maintain good contact between ball and seats during the operation
    6. Live loading design to eliminate stem leakage and provide longer life cycle
    7. Anti-Static design
    8. Anti-blow out stem design
    9. ISO 5211 mounting pad
    10. Fire saft design
    11. Optional TC coating for heavy slurry

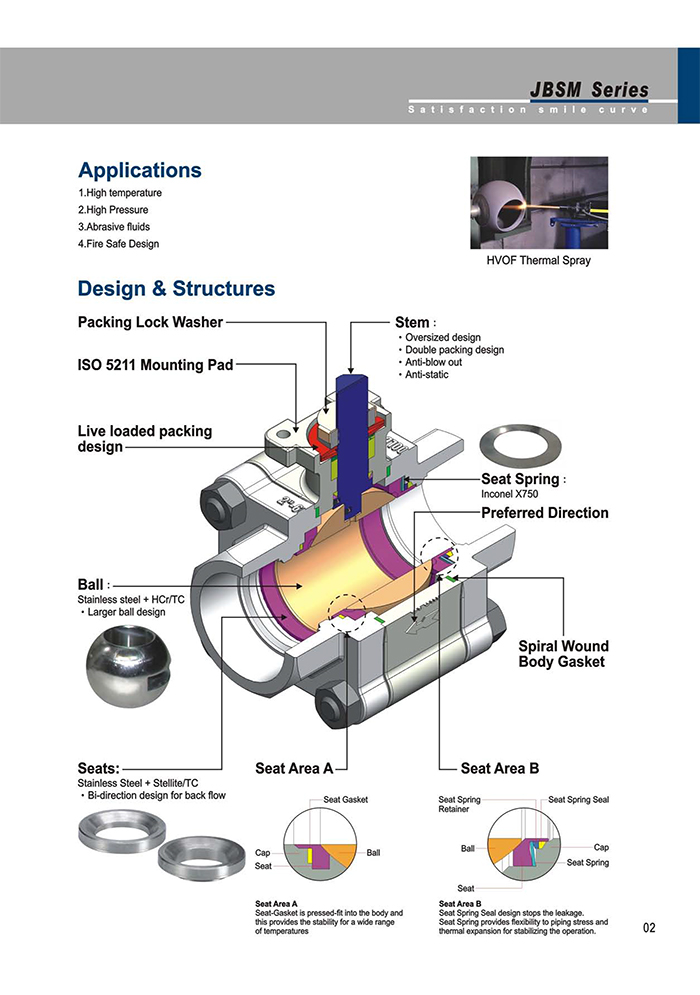

    proimages/pic_pro-004-pdf.jpg

    Technical Specification
    NO PART NAME '-29℃ ~ 350℃ (-20℉ ~ 661℉)
    1 BODY WCB CF8M
    2 CAP WCB CF8M
    3 BALL CF8M + HCr/TC
    4 SEAT SUS316 + STELLITE/TC
    5 SEAT GASKET GRAPHITE
    6 SEAT SPRING RETAINER SUS316
    7 SEAT SPRING SEAL GRAPHITE
    8 SEAT SPRING INCONEL X750
    9 GASKET SUS316 + GRAPHITE
    10 BOLT & NUT B7 & 7 B8 & 8
    11 THRUST WASHER SUS316 & GRAPHITE
    12 GLAND PACKING GRAPHITE
    13 STEM SUS316
    14 RING SUS316
    15 BEVEL WASHER STAINLESS STEEL
    16 NUT SUS304
    17 PACKING LOCK WASHER SUS304
    18 LEVER HANDLE SUS304
    19 LEVEL NUT SUS304
    Applicable Standards
    proimages/pic_pro-004-pdf3.jpg
    • Body material :
    		 Standard in WCB , CF8,CF8M Special material is available according to reqirements.
    • Nominal sze :
    		 1/2" to 8"(DN15 to DN200)
    • Pressure rating :
    		 JIS 10/20/40K ANSI 150/300/600LB DIN PN10/16/25/40
    • End connections :
    		 Ralseed face flange
    • Temperature Range :
    		 -29 Deg C to 500 Deg C
    • Face-To-Face Dimensions :
    		 JIS B2002 / ANSI B16.10
    • Flange Dimensions :
    		 JIS B2238 / ANSI B16.5
    • Body Pressure Testing :
    		 JIS B2003 / ANSI B16.34 / API 598
    • Seat Leakage Testing :
    		 ANIS B16.104/FC1 70-2 CLASS V
    • Casting :
    		 MSS SP-61/MSS-SP-25/MSS-SP-55
    Technical Specification MATERIAL
    NO TEMPERATURE SM SH
    -29Deg C ~ 350Deg C -29Deg C ~ 425Deg C -29Deg C ~ 500Deg C
    1 Body WCB CF8 CF8M WCB CF8 CF8M
    2 CAP WCB CF8 CF8M WCB CF8 CF8M
    3 BALL CF8/CF8M+HCr CF8/CF8M+TC
    4 SEAT SUS304/SUS316 + STELLITE
    5 SEAT GASKET GRAPHITE
    6 SEAT SPRING INCONEL X750
    7 BODY GASKET SUS316 + GRAPHITE
    8

    JOINT BOLT & NUT

    		 B7 & 2H B8 & 8 B7 & 2H B8 &8
    9 THRUST WASHER STAINLESS STEEL
    10 GLAND PACKING FLEXIBLE GRAPHITE
    11 STEM SUS316/SUS630 INCONEL 718
    12 GLAND SUS304
    13 GLAND BOLT SUS304
    Notes : HCr = Hard Chrome Plated / TC = Tungsten Carbide Coated
    Above materials may vary with different using conditions.
